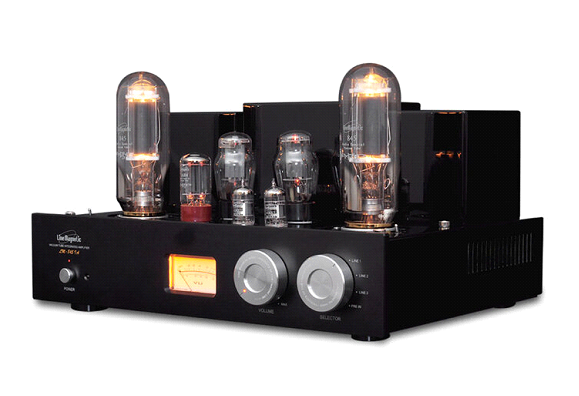

LINE MAGNETIC LM-845IA VALVE INTEGRATED AMPLIFIER
The LM-845IA is a quality upgrade of the old LM-518 amplifier. It delivers twenty-two watts per channel. Single ended design, Pure Class A, Integrated Stereo Amplifier with 845 output power tubes. The rear-illuminated front panel meter is used to adjust the polarization of the tubes.
The use of high quality components (Realcap capacitors, ALPS potentiometer) wired in the air for the most part is the guarantee of exemplary reliability. Its transformers output are of EI type, specially disigned for power supply.
Its power and current capacity allows it to manage a very wide range of speakers. The use of the legendary triode 845 offers a listening to an unusual musicality.

Highlights
- Single ended design
- Class A amplifier
- Point-to-point wiring
- High quality components

LINE MAGNETIC LM-845IA VALVE INTEGRATED AMPLIFIER

SKU: 364115376135191
£3,999.00Price
Color

  • SPECIFICATIONS
    TUBES
    Input stage: 2x 12AX7
    Rectifier: 1x 5AR4
    Drivers: 2x 6P3P
    Power stage: 2x 845 « single-ended » design and pure class A
    Hand-made construction with the finest point-to-point wiring
    Bias control is accessible on top of the amplifier panel with true ampere meter.
    Analog Inputs: 3 line inputs Load impedance: 4/8/16Ω
    SoftStart and time-delay circuit. (30 seconds)
    Specially designed EI transformer for power supply
    Two EI output transformers with wide bandwidth are applied
    ALPS volume control and Realcap capacitors are applied.

    Metal and removable tube guard cage Infrared
    Remote control
    TUBES BASICS COMMON REPLACEMENTS
    12AX7 12AX7EH, ECC83, E83CC, CV4004, ECC803, 5751
    12AU7 ECC82, 12AU7EH, 5814, 6189, CV4003
    EL34 6CA7




    SPECIFICATIONS
    Class A amplifier - 2x22W RMS
    THD: 1% (1kHz)
    Signal/Noise ratio: 87dB (Weighted A)
    Frequency response (-1.5dB): 10 - 50.000 Hz
    Sensitivity: 220 mV (Built-in Mode)
    Input Impedance: 100kΩ
    Load impedance for HP to connect: 4/8/16Ω

    CONNECTORS
    CONNECTORS
    3x Line inputs RCA (pair)
    1x Pré-in input
    2x Screw terminals compatible with banana plugs

    INCLUDED ACCESSORIES
    2x Fuses
    1x Remote control
    2x Battery AAA
    1x Detachable power cord
    1x Manual
    1x Warranty Card

    GENERAL
    ENERAL
    Dimensions (L x H x P): 365 x 250 x 340 mm
    Weight: 35 Kg
    Finish: Black
